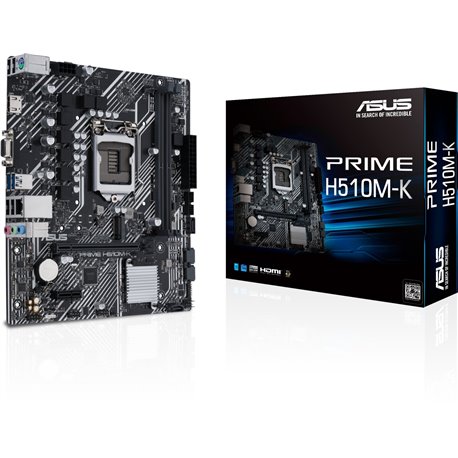

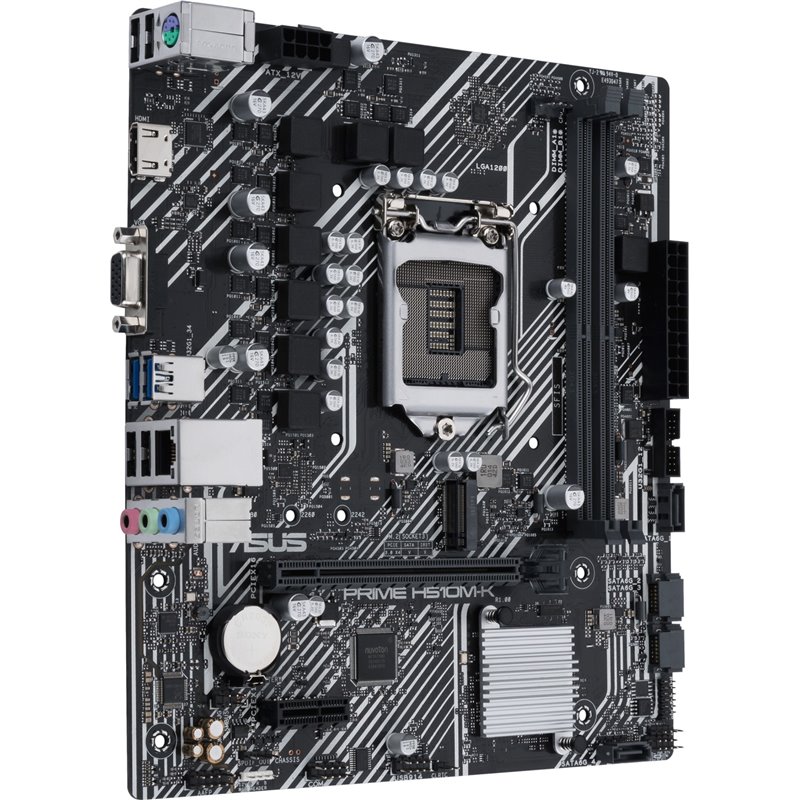

לוח אם ASUS Prime H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX - 90MB17N0-M0EAY0

לוח אם ASUS Prime H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX - 90MB17N0-M0EAY0 | מפרט טכני:

shape factor

µATX

Socket

Intel 1200 (LGA1200)

chipset

Intel H510

CPU-Compatibility

CPU-compatibility list

RAM-Slots

2x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 64GB (UDIMM)

RAM-data installment native

DDR4-3200

ECC support

no

external connectors

1x HDMI 2.0b (iGPU), 1x VGA (iGPU), 2x USB-A 3.0 (5Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (1000Base-T, Intel I219-V), 1x PS/​2 Combo

PCIe-Slots

1x PCIe 4.0 x16, 1x PCIe 3.0 x1

M.2-Slots

1x M.2/​M-Key (PCIe 3.0 x4/​SATA, 2280/​2260/​2242)

Miscellaneous Interfaces

4x SATA 6Gb/s (H510)

internal connectors - USB

1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 1x USB 2.0 header 9-Pin (480Mb/​s, 2x USB-A)

internal connectors - other

1x serial Header, 1x S/​PDIF Header, 1x TPM Header, 1x Speaker Header, 1x COM Debug Header

internal connectors - Cooling

1x CPU fan 4-Pin PWM, 1x fan 4-Pin PWM

internal connectors - Power supply

1x 24-Pin ATX, 1x 8-Pin EPS12V

internal connectors - Lighting

1x 4-Pin RGB (+12V/​G/​R/​B, max. 3A)

Audio

Realtek ALC897

network

Intel I219-V (1Gb/​s)

Graphics

iGPU

Wireless

not available

VRM-Design

6+1, 7 virtual CPU-phases (6+1), 7 real CPU-phases (6+1)

MOSFETs VCORE

6x 58A SiRA14DP/​SiRA12DP (High-/​Low-Side)

MOSFETs SOC/VCCGT

1x 58A SiRA14DP/​2x SiRA12DP (High-/​Low-Side)

PWM-controller

ASP1900B (NCP81610, max. 8 phases)

Lighting

not available

BIOS

1x 16MB (128Mb)

Special features

audio+solid capacitors
