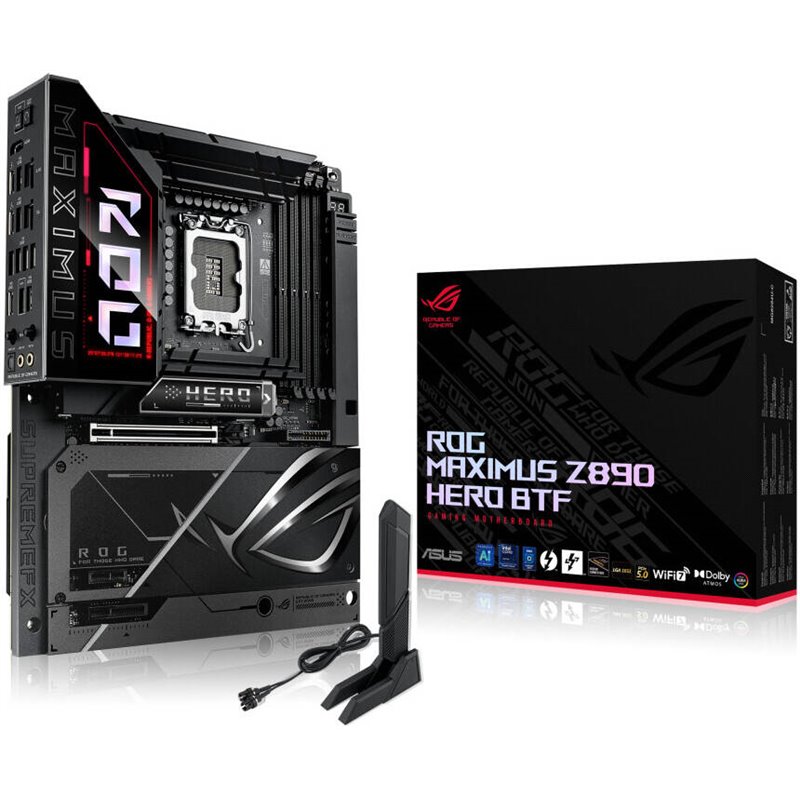

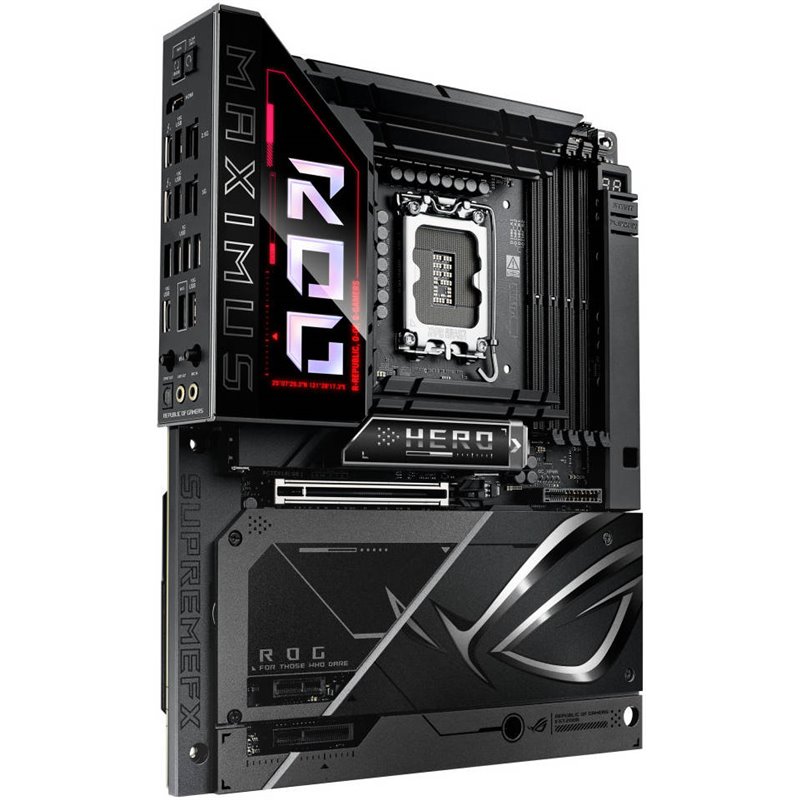

לוח אם ASUS ROG Maximus Z890 Hero BTF - 90MB1KG0-M0EAY0

לוח אם ASUS ROG Maximus Z890 Hero BTF - 90MB1KG0-M0EAY0 | מפרט טכני:

shape factor

ATX

Socket

Intel 1851 (LGA1851)

chipset

Intel Z890

CPU-Compatibility

Core Ultra 200S, CPU-compatibility list

RAM-Slots

4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/​CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM)

RAM-data installment OC

max. DDR5-9200

RAM-data installment native

DDR5-5600 UDIMM/​DDR5-6400 CUDIMM (Core Ultra 200S)

ECC support

no

external connectors

1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 /​ USB4 with DisplayPort 2.1 (40Gb/​s, PD-Out 15W, iGPU), 1x USB-C 3.1 (10Gb/​s), 4x USB-A 3.1 (10Gb/​s), 4x USB-A 3.0 (5Gb/​s), 1x toslink S/​PDIF Out (Realtek ALC4082), 2x 3.5mm jack (Realtek ALC4082), 1x RJ-45 (5GBase-T, Realtek), 1x RJ-45 (2.5GBase-T, Intel I226-V), 2x antenna connector Quick Connect

PCIe-Slots

1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x1

M.2-Slots

1x M.2/​M-Key (PCIe 5.0 x4, 22110/​2280/​2260/​2242), 2x M.2/​M-Key (PCIe 5.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 2x M.2/​M-Key (PCIe 4.0 x4, 2280), 1x M.2/​E-Key (2230, occupied with WiFi+BT module)

Miscellaneous Interfaces

4x SATA 6Gb/s (Z890, back side)

internal connectors - USB

1x USB 3.2 Header Key-A (20Gb/​s, PD-Out 60W, QC4+, 1x USB-C, back side), 1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C, back side), 2x USB 3.0 Header 20-Pin (5Gb/​s, 4x USB-A, back side), 2x USB 2.0 header 9-Pin (480Mb/​s, 4x USB-A, back side)

internal connectors - other

1x ASUS Thunderbolt USB4 Header (TB(USB4), back side)

internal connectors - Cooling

1x CPU fan 4-Pin PWM, 1x CPU fan 4-Pin PWM (back side), 4x fan 4-Pin PWM (back side), 1x AIO-pump 4-Pin PWM (back side), 1x pump 4-Pin PWM (back side), 1x Thermal-sensor Header

internal connectors - Power supply

1x 24-Pin ATX (back side), 2x 8-Pin EPS12V (back side), 1x GC-HPWR /​ ASUS BTF, 1x 12V-2x6 (back side, for PCIe High Power connector)

internal connectors - Lighting

3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2, back side)

buttons/Switches

clear-CMOS-Button (external), USB BIOS Flashback (external), Alternative PCIe Mode switch (internal), FlexKey-Button (internal), Retry-Button (internal), Start Button (internal)

Audio

Realtek ALC4082, DAC (ESS ES9219Q), ASUS SupremeFX

network

Realtek (5Gb/​s), Intel I226-V (2.5Gb/​s)

Graphics

iGPU

Wireless

Wi-Fi 7 (WLAN 802.11a/​b/​g/​n/​ac/​ax/​be, 2x2, Intel BE200), Bluetooth 5.4

RAID level

0/​1/​5/​10 (Z890)

VRM-Design

22+1+2+2, 23 virtual CPU-phases (2x11+1), 12 real CPU-phases (11+1)

MOSFETs VCORE

22x 110A

MOSFETs SOC/VCCGT

1x 90A

MOSFETs VDD_MISC/VCCSA/VCCAUX

2x 90A

MOSFETs VNNAON

2x 80A

Lighting

RGB, 1 zone (I/​O cover)

BIOS

1x 32MB (256Mb)

Special features

audio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment indication), I/​O-shield integrated, Backplate, 6x M.2-passive cooler, internal connectors rückseitig (ASUS advanced BTF)
