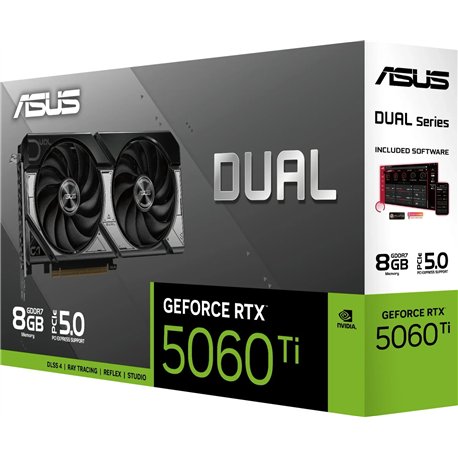

כרטיס מסך ASUS Dual GeForce RTX 5060 Ti - 8GB GDDR7 - HDMI - 3x DP - 90YV0MP3-M0NA00

כרטיס מסך ASUS Dual GeForce RTX 5060 Ti - 8GB GDDR7 - HDMI - 3x DP - 90YV0MP3-M0NA00 | מפרט טכני:

Model

NVIDIA GeForce RTX 5060 Ti

memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/​s

Basic tempo

2407MHz (standard profile), 2407MHz (OC profile)

Clock speed boost

2572MHz (standard profile), 2602MHz (OC profile)

Overclocking

+30MHz Boost (OC profile)

cooling

2x axial fans (95mm) with 0dB zero-fan mode (up to 55°C)

TDP/TGP

180W (NVIDIA)

Power connections

1x 8-Pin PCIe

Connections

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Connection

PCIe 5.0 x16 (x8)

Special features

Backplate, AI acceleration, clock profiles (Default Mode/OC Mode), NVIDIA GeForce SFF-Ready

Total height

Triple Slot (2.5 Slots)

Dimensions

229x120x50mm (LxWxH)

Design

PCIe card (full height)

Slot cover

full height

AI computing power (dense)

379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)

AI computing power (sparse)

759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)

GPU computing power

23.96 TFLOPS (FP16), 23.96 TFLOPS (FP32), 0.37 TFLOPS (FP64)

Chip data

Chip architecture

NVIDIA Blackwell (from 2025/​Q1)

Chip designation

GB206 (GB206-300-A1)

Chip expansion

Full build (36/36 SM)

Chip configuration

36SM (4608SP/​144TMU/​48ROP), 36 RT cores, 144 Tensor cores, 32MiB L2 cache

Chip manufacturing

TSMC N5P [NVIDIA 4N] (5nm)

Chip size

181 mm², monolithic, 21.9 billion transistors

Chip functions

Ray tracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3

Chip usage

GeForce RTX 5060 Ti
GeForce RTX 5060
RTX PRO 2000 Blackwell

API support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info

Encoding

AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 /​ 4K YUV 4:2:2 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:2:2 /​ YUV 4:4:4 /​ Lossless)

Decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:2:2 / 10bit 4:2:2 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Multi-GPU connectivity

-

Publication (Series)

April 16, 2025, Announcement: April 15, 2025, MSRP: $379 (NVIDIA)

graphic

NVIDIA GeForce RTX 5060 Ti - 8GB GDDR7 - Desktop
