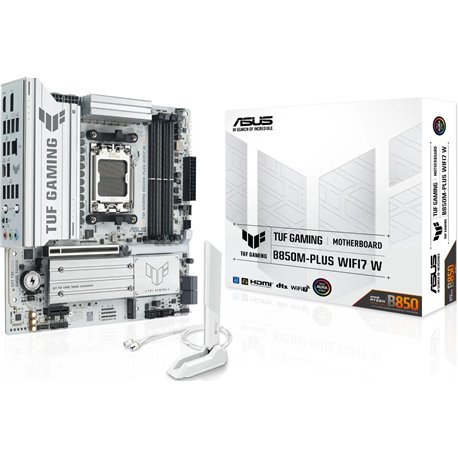

לוח אם Asus TUF GAMING B850M-PLUS WIFI7 W AMD AM5 DDR5 - 90MB1MD0-M0EAY0

לוח אם Asus TUF GAMING B850M-PLUS WIFI7 W AMD AM5 DDR5 - 90MB1MD0-M0EAY0 | מפרט טכני:

Form factor

µATX

base

AMD AM5

Chipset

AMD B850

CPU compatibility

Ryzen 7000 , Ryzen 8000G , Ryzen 9000 , CPU compatibility list

R.A.M.

4x DDR5 DIMM slots, dual channel, max. 256GB UDIMM Non-ECC+ECC

RAM data rate

DDR5-5200 (Ryzen 7000/​Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000 OC

ECC support

Yes

External connections

1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/​s, PD-Out 15W), 3x USB-A 3.1 (10Gb/​s), 4x USB-A 3.0 (5Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x 3.5mm jack (Realtek ALC1220P), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenna connection Quick Connect

PCIe slots

1x PCIe 5.0 x16, 1x PCIe 4.0 x1

M.2 slots

1x M.2/​M-Key (PCIe 5.0 x4, 2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4, 2280), 1x M.2/​E-Key (2230, assigned with WiFi+BT module)

Other interfaces

4x SATA 6Gb/s (B850)

Internal connections - USB

1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)

Internal connections - other

1x serial header, 1x chassis intrusion header

Internal connections - Cooling

2x CPU fan 4-pin PWM, 3x fan 4-pin PWM, 1x AIO pump 4-pin PWM

Internal connections - power supply

1x 24-pin ATX, 2x 8-pin EPS12V

Internal connections - lighting

3x 3-pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

Buttons/Switches

USB BIOS Flashback (external)

Audio

Realtek ALC1220P, DTS Audio Processing

network

Realtek (2.5Gb/s)

graphic

iGPU

RAID level

0/1/10 (B850)

Wireless

Wi-Fi 7 (WLAN 802.11a/​b/​g/​n/​ac/​ax/​be, 2x2, MediaTek MT7925), Bluetooth 5.4

VRM design

14+2+1, 16 virtual CPU phases (2x7+2), 9 real CPU phases (7+2)

MOSFETs VCORE

14x 80A AOZ53071QI (DrMOS)

MOSFETs SOC/VCCGT

2x 80A AOZ53071QI (DrMOS)

Other MOSFETs

1x 80A AOZ53071QI (DrMOS)

PWM controller

ASP2308 (XDPE12284C, max. 8 phases), RT3672EE (max. 2 phases)

lighting

N/A

BIOS

1x 32MB (256Mb)

Special features

Audio+solid capacitors, diagnostic LED (LED indicators), integrated I/O shield, white build compatible (white PCB), 3x M.2 passive heatsinks

guarantee

3 years
