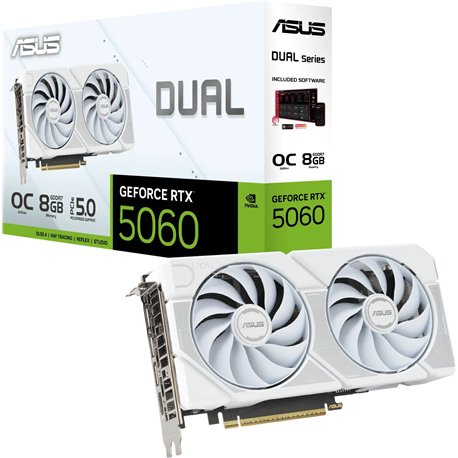

כרטיס מסך Asus Dual GeForce RTX 5060 White OC Edition - WHITE - 8GB GDDR7 - 90YV0N15-M0NA00

כרטיס מסך Asus Dual GeForce RTX 5060 White OC Edition - WHITE - 8GB GDDR7 - 90YV0N15-M0NA00 | מפרט טכני:

Model

NVIDIA GeForce RTX 5060

memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/​s

Basic tempo

2280MHz (standard profile), 2280MHz (OC profile)

Clock speed boost

2535MHz (standard profile), 2565MHz (OC profile)

Overclocking

+68MHz Boost (OC profile), +38MHz Boost (Standard profile)

cooling

2x axial fans (95mm) with 0dB zero-fan mode (up to 55°C)

TDP/TGP

145W (NVIDIA)

Power connections

1x 8-Pin PCIe

Connections

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Connection

PCIe 5.0 x16 (x8)

Special features

Backplate, AI acceleration, clock profiles (Default Mode/OC Mode), NVIDIA GeForce SFF-Ready , White Build compatible (white color scheme)

Total height

Triple Slot (2.5 Slots)

Dimensions

228x123x50mm (LxWxH)

Design

PCIe card (full height)

Slot cover

full height

AI computing power (dense)

307 TOPS (FP4), 153.5 TOPS (FP8), 76.75 TOPS (FP16)

AI computing power (sparse)

614 TOPS (FP4), 307 TOPS (FP8), 153.5 TOPS (FP16)

GPU computing power

19.70 TFLOPS (FP16), 19.70 TFLOPS (FP32), 0.31 TFLOPS (FP64)

Chip data

Chip architecture

Blackwell (from 2025/Q1)

Chip designation

GB206 (GB206-250-A1)

Chip expansion

83.3% active computing units (30/36 SM)

Chip configuration

30SM (3840SP/​120TMU/​48ROP), 30 RT cores, 120 Tensor cores, 32MiB L2 cache

Chip manufacturing

TSMC N5P [NVIDIA 4N]

Chip size

181 mm², monolithic, 21.9 billion transistors

Chip functions

Ray tracing (4th Gen NVIDIA RTX, 48 TFLOPS), NVIDIA Tensor (5th Gen, 76.75 TOPS), HDCP 2.3

API support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info

Encoding

AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 /​ 4K YUV 4:2:2 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:2:2 /​ YUV 4:4:4 /​ Lossless)

Decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:2:2 / 10bit 4:2:2 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
