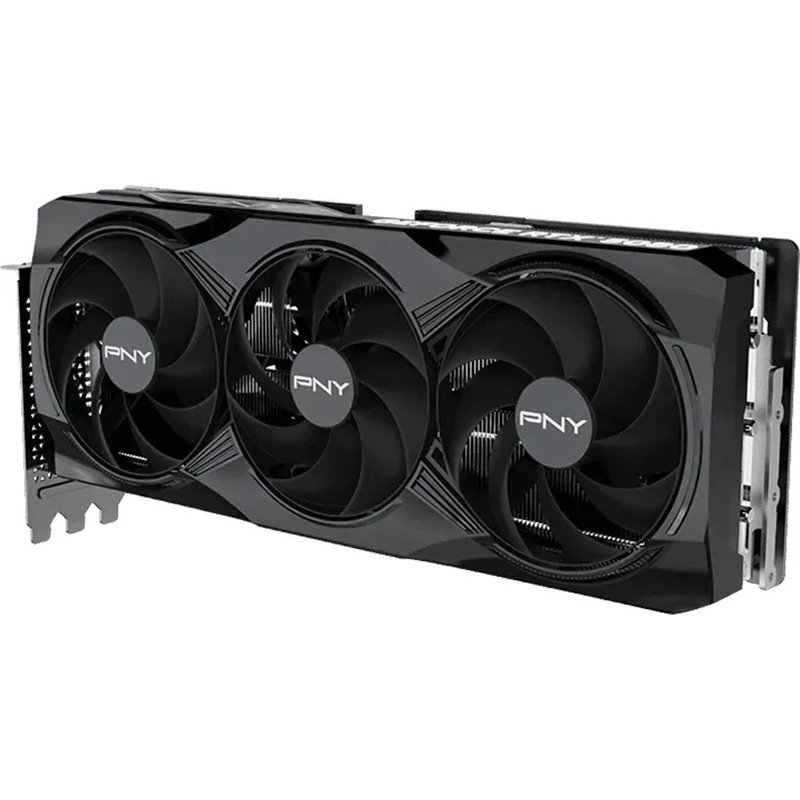

כרטיס מסך Nvidia PNY GEFORCE RTX 5080 16GB VCG508016TFXPB1-O

כרטיס מסך Nvidia PNY GEFORCE RTX 5080 16GB VCG508016TFXPB1-O | מפרט טכני:

Model

NVIDIA GeForce RTX 5080

Memory

16GB GDDR7, 256bit, 30Gbps, 1875MHz, 960GB/​s

clock Base

2295MHz

clock Boost

2730MHz

overclock

+113MHz Boost

Cooling

3x Axial-fan (100mm) with 0dB-zero-fan-mode

TDP/TGP

360W (NVIDIA), max. 360W (PNY)

Power connections

1x 12V-2x6 (via adapter: 3x 8-Pin PCIe)

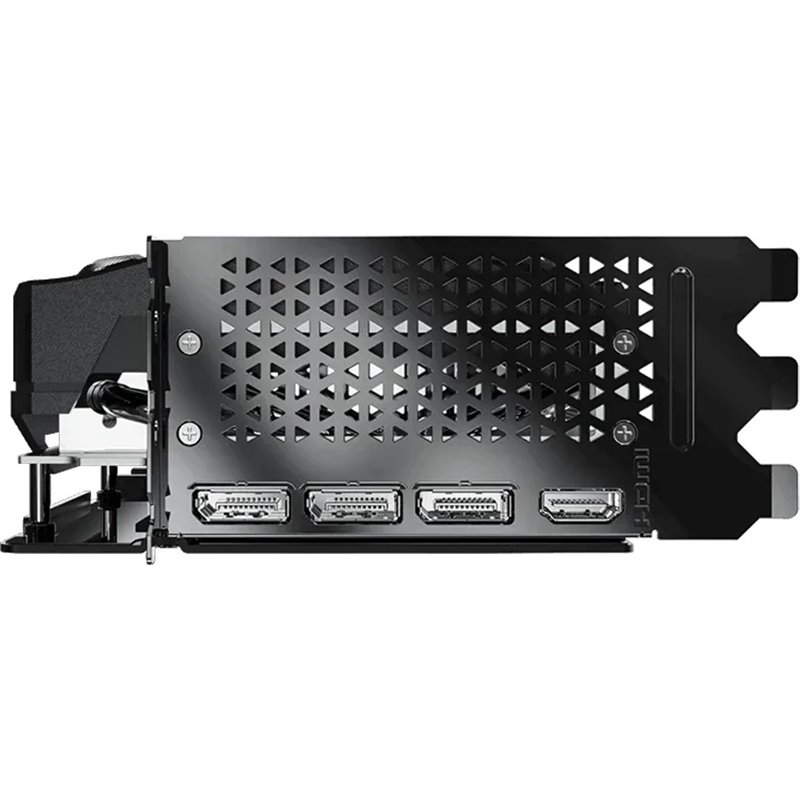

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16

Special features

Backplate, AI-acceleration

total height

Triple Slot (3.0 Slots)

Dimensions

328.68x137.67x59.69mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

900.4 TOPS (FP4), 450.2 TOPS (FP8), 225.1 TOPS (FP16)

AI-computing power (sparse)

1800.8 TOPS (FP4), 900.4 TOPS (FP8), 450.2 TOPS (FP16)

GPU-Computing power

58.71 TFLOPS (FP16), 58.71 TFLOPS (FP32), 0.92 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/​Q1)

Chip-title

GB203 (GB203-400-A1)

Chip-Ausbau

Vollausbau (84/​84 SM)

Chip-Configuration

84 SM (10752 Shader /​ 336 TMUs /​ 112 ROPs), 84 RT Cores, 336 Tensor Cores, 64MiB L2 cache

Chip-Manufacturing Process

TSMC N5P (5nm) [NVIDIA 4N]

Chip size

378mm², monolithisch, 45.6 Mrd. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 171 TFLOPS), NVIDIA Tensor (5th Gen, 225.1 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) /​ CUDA 12.8 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.8

Transcoding-Engine

2x NVENC (9th Gen, max. Sessions: 8), 2x NVDEC (6th Gen), Info

encoding

AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 /​ 4K YUV 4:2:2 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:2:2 /​ YUV 4:4:4 /​ Lossless)

decoding

AV1 (8bit /​ 10bit), H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:2:2 /​ 10bit 4:2:2 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit /​ 10bit /​ 12bit), VP8, VC-1, MPEG-2, MPEG-1
