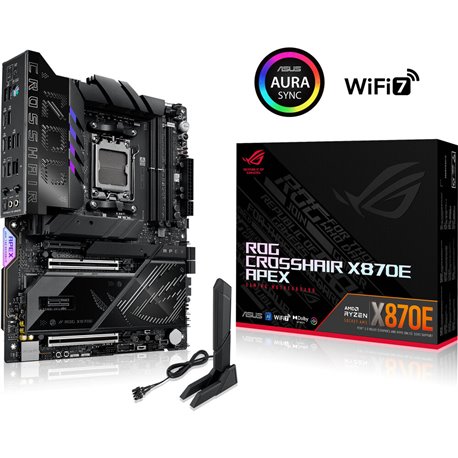

לוח אם ASUS ROG Crosshair X870E Apex AMD X870E ATX - 90MB1KR0-M0EAY0

לוח אם ASUS ROG Crosshair X870E Apex AMD X870E ATX - 90MB1KR0-M0EAY0 | מפרט טכני:

shape factor

ATX

Socket

AMD AM5

chipset

AMD X870E

CPU-Compatibility

Ryzen 7000, Ryzen 8000G, Ryzen 9000, CPU-compatibility list

RAM-Slots

2x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC+ECC), max. 128GB (UDIMM)

RAM-data installment OC

max. DDR5-9600

RAM-data installment native

DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)

ECC support

yes

external connectors

2x USB4 with DisplayPort 1.4a (40Gb/​s, PD-Out 15W, iGPU), 1x USB-C 3.1 (10Gb/​s), 5x USB-A 3.1 (10Gb/​s), 2x USB-A 3.0 (5Gb/​s), 1x toslink S/​PDIF Out (Realtek ALC4080), 2x 3.5mm jack (Realtek ALC4080), 1x RJ-45 (5GBase-T, Realtek), 1x PS/​2 Combo, 2x antenna connector Quick Connect

PCIe-Slots

2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/​x0 or x8/​x8], 1x PCIe 4.0 x4, 1x PCIe 3.0 x1

M.2-Slots

3x M.2/​M-Key (PCIe 5.0 x4, 2280/​2260/​2242), 2x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280/​2260/​2242/​2230, DIMM.2), 1x M.2/​E-Key (2230, occupied with WiFi+BT module)

Miscellaneous Interfaces

4x SATA 6Gb/s (X870E)

internal connectors - USB

1x USB 3.2 Header Key-A (20Gb/​s, PD-Out 60W, QC4+, 1x USB-C), 1x USB 3.2 Header Key-A (20Gb/​s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/​s, 4x USB-A), 2x USB 2.0 header 9-Pin (480Mb/​s, 4x USB-A)

internal connectors - other

not available

internal connectors - Cooling

2x CPU fan 4-Pin PWM, 4x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM, 1x pump 4-Pin PWM, 1x Thermal-sensor Header

internal connectors - Power supply

1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 8-Pin PCIe

internal connectors - Lighting

3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

buttons/Switches

clear-CMOS-Button (external), USB BIOS Flashback (external), 2x BCLK-Button (internal), 2x RSVD switch (internal), Alternative PCIe Mode switch (internal), BIOS switch (internal), FlexKey-Button (internal), pause switch (internal), Retry-Button (internal), SafeBoot-Button (internal), SlowMode switch (internal), Start Button (internal)

Audio

Realtek ALC4080, AMP (Savitech SV3H712), ASUS SupremeFX

network

Realtek (5Gb/​s)

Graphics

iGPU

Wireless

Wi-Fi 7 (WLAN 802.11a/​b/​g/​n/​ac/​ax/​be, 2x2), Bluetooth 5.4, integrated WLAN antenna (without module)

RAID level

0/​1/​10 (X870E)

VRM-Design

18+2+2, 20 virtual CPU-phases (2x9+2x1), 10 real CPU-phases (9+1)

MOSFETs VCORE

18x 110A SiC850A (DrMOS)

MOSFETs SOC/VCCGT

2x 110A SiC850A (DrMOS)

MOSFETs VDD_MISC/VCCSA/VCCAUX

2x 80A SiC629 (DrMOS)

PWM-controller

ASP2205 (XDPE192C3B, max. 12 phases)

Lighting

RGB, 2 zones (chipset cooler, I/​O cover)

BIOS

2x 32MB (256Mb), Dual-BIOS

Special features

audio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment indication), I/​O-shield integrated, Backplate, voltage measurement points, 5x M.2-passive cooler
