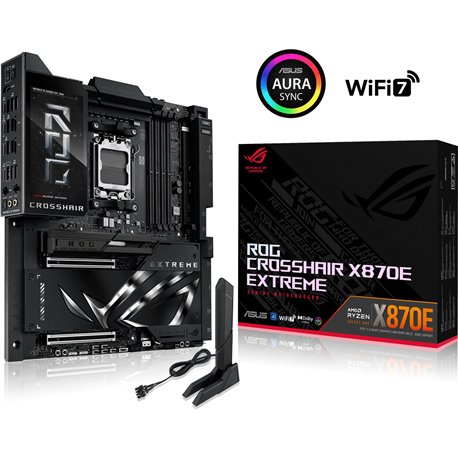

לוח אם ASUS ROG Crosshair X870E Extreme AMD X870E Extended ATX - 90MB1LB0-M0EAY0
יצרן : 90MB1LB0-M0EAY0 מוצר חדש
לוח אם ASUS ROG Crosshair X870E Extreme AMD X870E Extended ATX - 90MB1LB0-M0EAY0 | מפרט טכני:
shape factor
E-ATX, 12"x10.9" (304.8x276.9mm)
Socket
AMD AM5
chipset
AMD X870E
CPU-Compatibility
Ryzen 7000, Ryzen 8000G, Ryzen 9000, CPU-compatibility list
RAM-Slots
4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC+ECC), max. 256GB (UDIMM)
RAM-data installment OC
max. DDR5-9000
RAM-data installment native
DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
ECC support
yes

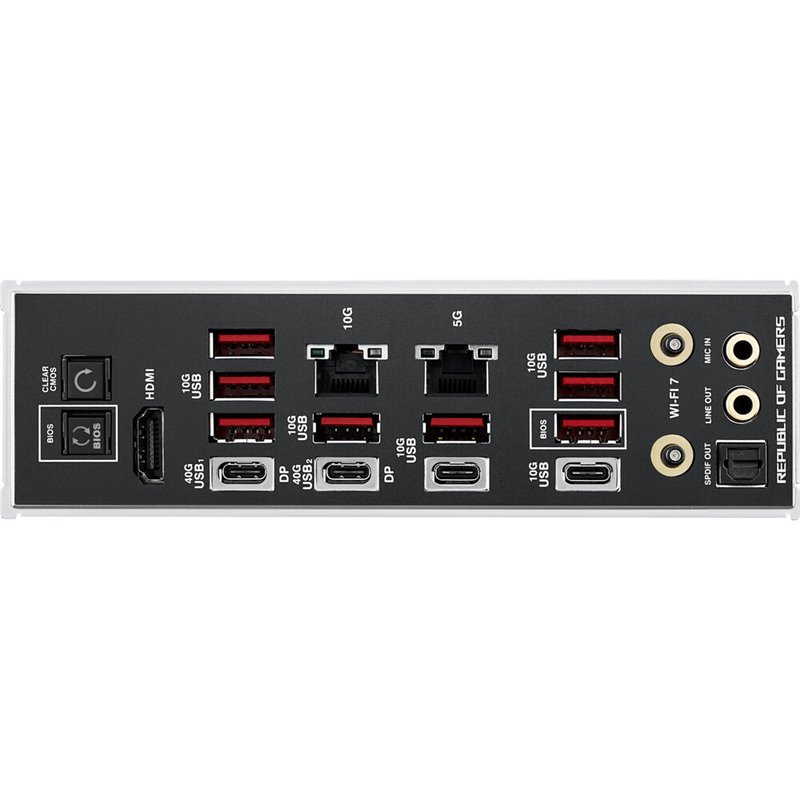

external connectors
1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4a (40Gb/s, PD-Out 15W, iGPU), 2x USB-C 3.1 (10Gb/s), 8x USB-A 3.1 (10Gb/s), 1x toslink S/PDIF Out (Realtek ALC4082), 2x 3.5mm jack (Realtek ALC4082, illuminated), 1x RJ-45 (5GBase-T, Realtek), 1x RJ-45 (10GBase-T, Marvell), 2x antenna connector Quick Connect
PCIe-Slots
2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/x0 or x8/x8]
M.2-Slots
2x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242/2230, DIMM.2), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
Miscellaneous Interfaces
1x Slim SAS SFF-8654 4i (PCIe 4.0 x4), 4x SATA 6Gb/s (X870E)
internal connectors - USB
1x USB 3.2 Header Key-A (20Gb/s, PD-Out 60W, QC4+, 1x USB-C), 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A), 2x USB 2.0 header 9-Pin (480Mb/s, 4x USB-A)
internal connectors - other
not available
internal connectors - Cooling
2x CPU fan 4-Pin PWM, 5x fan 4-Pin PWM, 2x pump 4-Pin PWM, 1x Thermal-sensor Header
internal connectors - Power supply
1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 8-Pin PCIe
internal connectors - Lighting
2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2, via adapter)
buttons/Switches
clear-CMOS-Button (external), USB BIOS Flashback (external), 2x BCLK-Button (internal), 2x RSVD switch (internal), BIOS switch (internal), FlexKey-Button (internal), pause switch (internal), PCIe switch (internal), Power-Button (internal), Retry-Button (internal), SafeBoot-Button (internal), SlowMode switch (internal), Start Button (internal)
Audio
Realtek ALC4082, DAC (ESS ES9219Q), ASUS SupremeFX
network
Marvell (10Gb/s), Realtek (5Gb/s)
Graphics
iGPU
Wireless
Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2, MediaTek MT7927), Bluetooth 5.3
RAID level
0/1/10 (X870E)
VRM-Design
20+2+2, 22 virtual CPU-phases (2x10+2x1), 11 real CPU-phases (10+1)
MOSFETs VCORE
20x 110A SiC850A (DrMOS)
MOSFETs SOC/VCCGT
2x 110A SiC850A (DrMOS)
MOSFETs VDD_MISC/VCCSA/VCCAUX
2x 80A SiC629 (DrMOS)
PWM-controller
ASP2205 (XDPE192C3B, max. 12 phases)
Lighting
RGB, 1 zone (I/O cover)
BIOS
2x 32MB (256Mb), Dual-BIOS
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment indication), I/O-shield integrated, Backplate, voltage measurement points, display, 5x M.2-passive cooler
shape factor
E-ATX, 12"x10.9" (304.8x276.9mm)
Socket
AMD AM5
chipset
AMD X870E
CPU-Compatibility
Ryzen 7000, Ryzen 8000G, Ryzen 9000, CPU-compatibility list
RAM-Slots
4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC+ECC), max. 256GB (UDIMM)
RAM-data installment OC
max. DDR5-9000
RAM-data installment native
DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
ECC support
yes
external connectors
1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4a (40Gb/s, PD-Out 15W, iGPU), 2x USB-C 3.1 (10Gb/s), 8x USB-A 3.1 (10Gb/s), 1x toslink S/PDIF Out (Realtek ALC4082), 2x 3.5mm jack (Realtek ALC4082, illuminated), 1x RJ-45 (5GBase-T, Realtek), 1x RJ-45 (10GBase-T, Marvell), 2x antenna connector Quick Connect
PCIe-Slots
2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/x0 or x8/x8]
M.2-Slots
2x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242/2230, DIMM.2), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
Miscellaneous Interfaces
1x Slim SAS SFF-8654 4i (PCIe 4.0 x4), 4x SATA 6Gb/s (X870E)
internal connectors - USB
1x USB 3.2 Header Key-A (20Gb/s, PD-Out 60W, QC4+, 1x USB-C), 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A), 2x USB 2.0 header 9-Pin (480Mb/s, 4x USB-A)
internal connectors - other
not available
internal connectors - Cooling
2x CPU fan 4-Pin PWM, 5x fan 4-Pin PWM, 2x pump 4-Pin PWM, 1x Thermal-sensor Header
internal connectors - Power supply
1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 8-Pin PCIe
internal connectors - Lighting
2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2, via adapter)
buttons/Switches
clear-CMOS-Button (external), USB BIOS Flashback (external), 2x BCLK-Button (internal), 2x RSVD switch (internal), BIOS switch (internal), FlexKey-Button (internal), pause switch (internal), PCIe switch (internal), Power-Button (internal), Retry-Button (internal), SafeBoot-Button (internal), SlowMode switch (internal), Start Button (internal)
Audio
Realtek ALC4082, DAC (ESS ES9219Q), ASUS SupremeFX
network
Marvell (10Gb/s), Realtek (5Gb/s)
Graphics
iGPU
Wireless
Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2, MediaTek MT7927), Bluetooth 5.3
RAID level
0/1/10 (X870E)
VRM-Design
20+2+2, 22 virtual CPU-phases (2x10+2x1), 11 real CPU-phases (10+1)
MOSFETs VCORE
20x 110A SiC850A (DrMOS)
MOSFETs SOC/VCCGT
2x 110A SiC850A (DrMOS)
MOSFETs VDD_MISC/VCCSA/VCCAUX
2x 80A SiC629 (DrMOS)
PWM-controller
ASP2205 (XDPE192C3B, max. 12 phases)
Lighting
RGB, 1 zone (I/O cover)
BIOS
2x 32MB (256Mb), Dual-BIOS
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment indication), I/O-shield integrated, Backplate, voltage measurement points, display, 5x M.2-passive cooler
| יצרן | Asus |
| חיבור Thunderbolt | לא |
| זמינות | לא במלאי |
| אחריות ושירות על ידי : | Asus | 1-700-72-11-77 |
| שם מוצר | לוח אם |
| כרטיס רשת אלחוטי | כן |
| חיבור לרשת קווית | כן |
| חיבור לרשת אלחוטית | כן |
| חיבור Display Port | לא |
| אחריות | 3 שנים אחריות יצרן במעבדה |
| חיבור HDMI | לא |
| Bluetooth | כן |
| יצרן | Asus |
| חיבור Thunderbolt | לא |
| זמינות | לא במלאי |
| אחריות ושירות על ידי : | Asus | 1-700-72-11-77 |
| שם מוצר | לוח אם |
| כרטיס רשת אלחוטי | כן |
| חיבור לרשת קווית | כן |
| חיבור לרשת אלחוטית | כן |
| חיבור Display Port | לא |
| אחריות | 3 שנים אחריות יצרן במעבדה |
| חיבור HDMI | לא |
| Bluetooth | כן |
