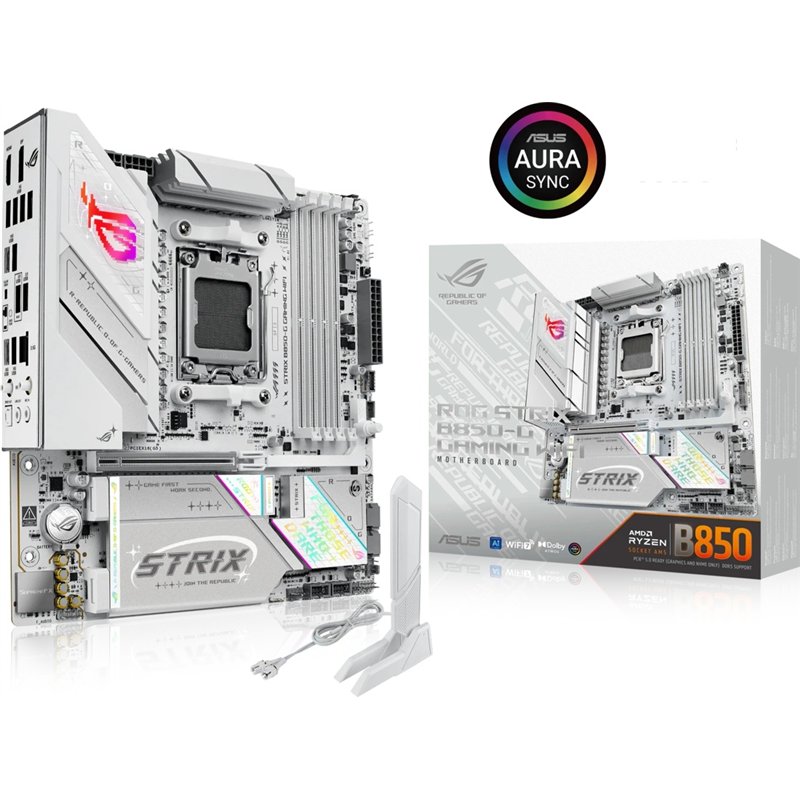

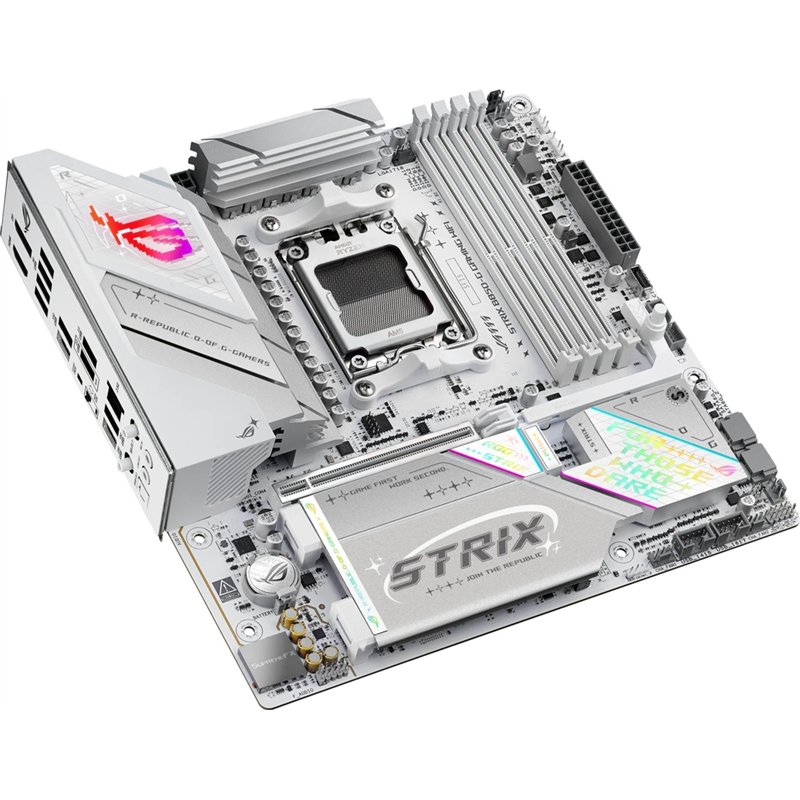

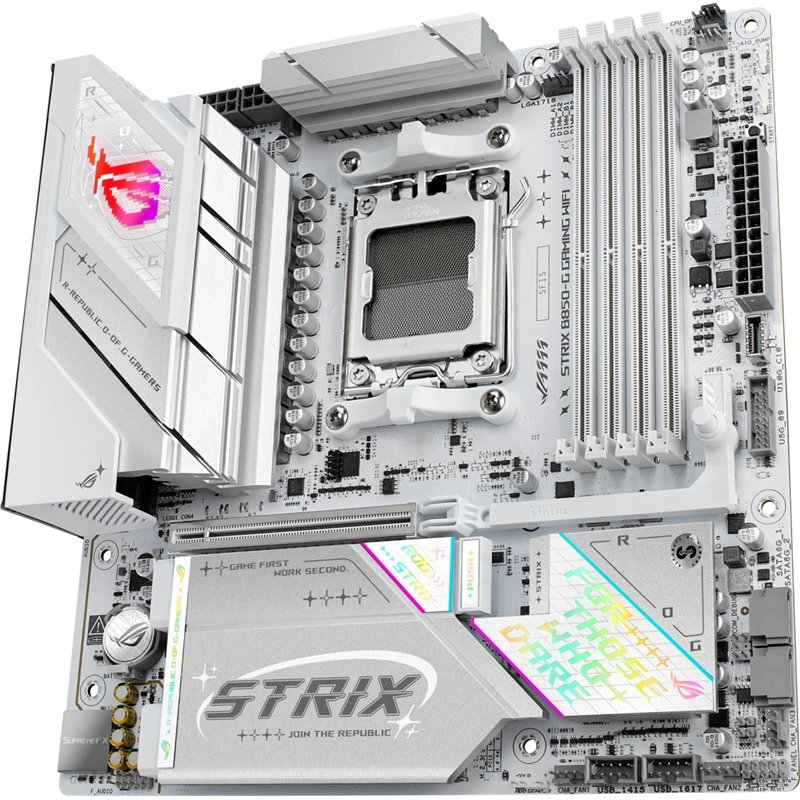

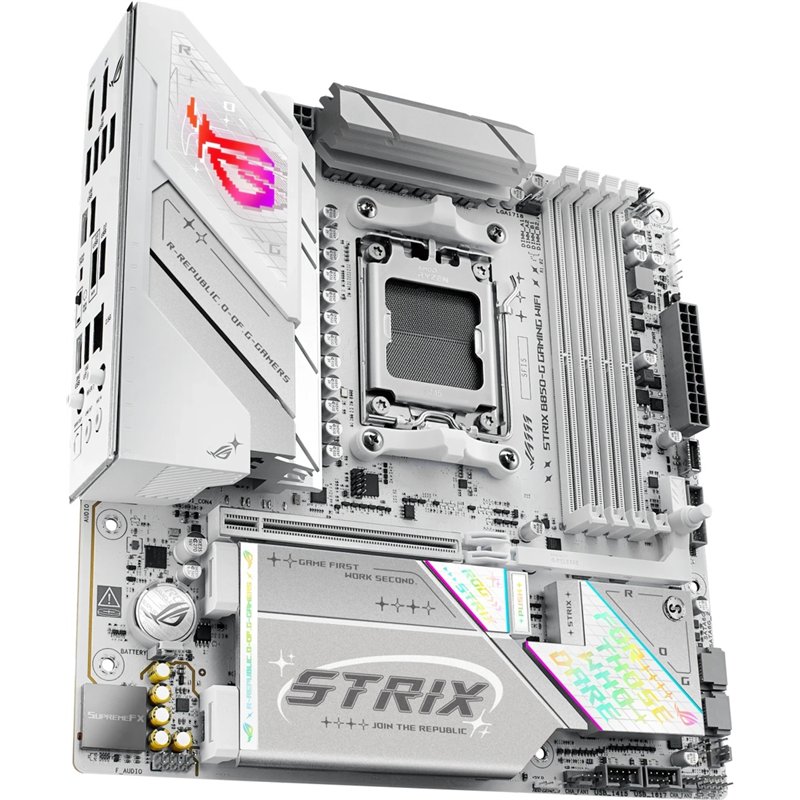

לוח אם Asus ROG STRIX B850-G GAMING WIFI AMD B850 Socket AM5 micro ATX - 90MB1M30-M0EAY0

לוח אם Asus ROG STRIX B850-G GAMING WIFI AMD B850 Socket AM5 micro ATX - 90MB1M30-M0EAY0 | מפרט טכני:

Form factor - µATX

base - AMD AM5

Chipset - AMD B850

CPU compatibility - Ryzen 7000 , Ryzen 8000G , Ryzen 9000 , CPU compatibility list

R.A.M. - 4x DDR5 DIMM slots, dual channel, max. 256GB UDIMM Non-ECC+ECC

RAM data rate - DDR5-5200 (Ryzen 7000/​Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000 OC

ECC support - Yes

External connections

1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/​s), 1x USB-C 3.1 (10Gb/​s), 2x USB-A 3.1 (10Gb/​s), 4x USB-A 3.0 (5Gb/​s), 2x USB-A 2.0 (480Mb/​s), 1x Toslink S/​PDIF Out (Realtek ALC1220P), 2x 3.5mm jack (Realtek ALC1220P), 1x RJ-45 (2.5GBase-T, Intel I226-V), 2x Quick Connect antenna connection

PCIe slots - 1x PCIe 5.0 x16

M.2 slots

1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 5.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4, 2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2280, back), 1x M.2/​E-Key (2230, occupied with WiFi+BT module)

Other interfaces - 2x SATA 6Gb/s (B850)

Internal connections - USB

1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)

Internal connections - other - 1x Chassis Intrusion Header

Internal connections - Cooling

2x CPU fan 4-pin PWM, 3x fan 4-pin PWM, 1x AIO pump 4-pin PWM, 1x thermal sensor header

Internal connections - power supply - 1x 24-pin ATX, 2x 8-pin EPS12V

Internal connections - lighting - 3x 3-pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

Buttons/Switches - Clear CMOS button (external), USB BIOS flashback (external), power button (internal)

Audio - Realtek ALC1220P, AMP (Savitech SV3H712), ASUS SupremeFX

network - Intel I226-V (2.5Gb/s)

graphic - iGPU

RAID level - 0/1/10 (B850)

Wireless - Wi-Fi 7 (WLAN 802.11a/​b/​g/​n/​ac/​ax/​be, 2x2, Realtek RTL8922AE), Bluetooth 5.4

lighting - RGB, 1 zone (I/O coverage)

BIOS - 1x 32MB (256Mb)

Special features

Audio+solid capacitors, diagnostic LED (LED indicators), integrated I/O shield, white build compatible (white PCB), 3x M.2 passive heatsinks

guarantee

3 years
