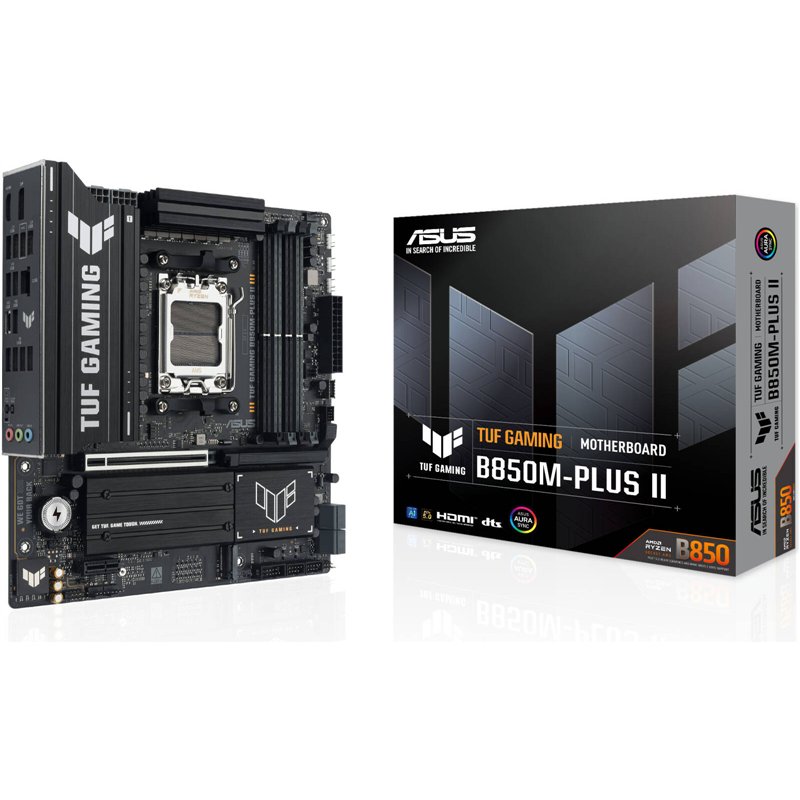

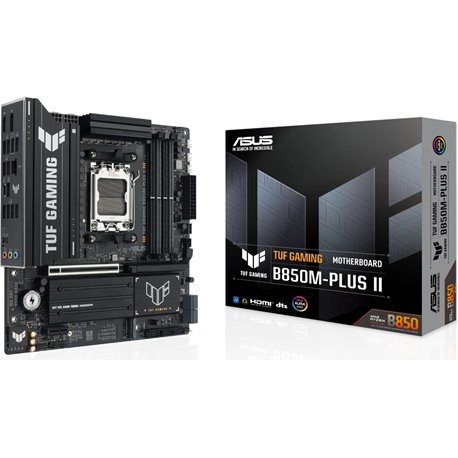

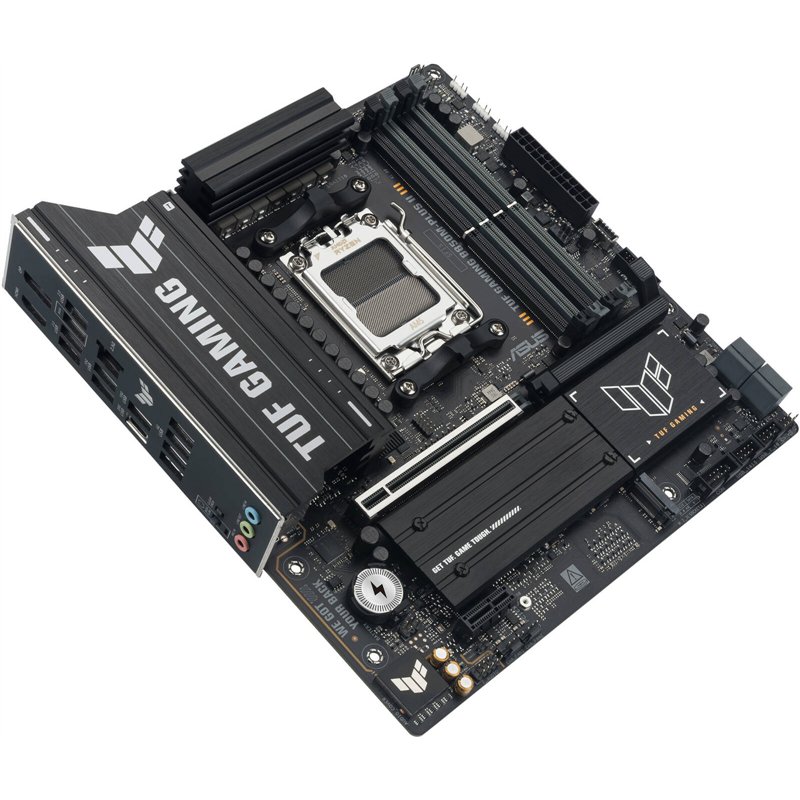

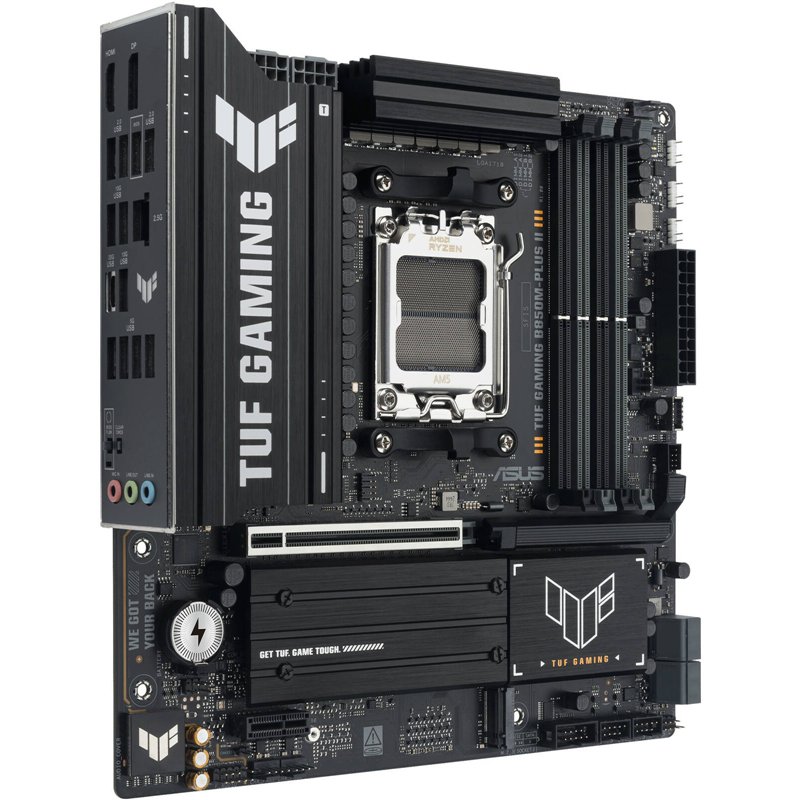

לוח אם Asus TUF GAMING B850M-PLUS II AMD B850 Socket AM5 micro ATX - 90MB1MT0-M0EAY0

לוח אם Asus TUF GAMING B850M-PLUS II AMD B850 Socket AM5 micro ATX - 90MB1MT0-M0EAY0  | Specs

Form factor - µATX

base - AMD AM5

Chipset - AMD B850

CPU compatibility - Ryzen 7000 , Ryzen 8000G , Ryzen 9000 , CPU compatibility list

R.A.M. - 4x DDR5 DIMM slots, dual channel, max. 256GB UDIMM Non-ECC+ECC

RAM data rate - DDR5-5200 (Ryzen 7000/​Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000 OC

ECC support - Yes

External connections

1x DisplayPort 1.4 (iGPU)

1x HDMI 2.1 (iGPU)

1x USB-C 3.2 (20Gb/​s, PD-Out 15W)

3x USB-A 3.1 (10Gb/​s), 4x USB-A 3.0 (5Gb/​s)

4x USB-A 2.0 (480Mb/​s)

3x 3.5mm jack (Realtek ALC1220P)

1x RJ-45 (2.5GBase-T, Realtek)

PCIe slots

1x PCIe 5.0 x16

1x PCIe 4.0 x1

M.2 slots

1x M.2/​M-Key (PCIe 5.0 x4, 2280)

1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242)

1x M.2/​M-Key (PCIe 4.0 x4, 2280)

Other interfaces

4x SATA 6Gb/s (B850)

Internal connections - USB

1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C)

1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A)

2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)

Internal connections - other

1x serial header

1x chassis intrusion header

Internal connections - Cooling

2x CPU fan 4-pin PWM

3x fan 4-pin PWM

1x AIO pump 4-pin PWM

Internal connections - power supply

1x 24-pin ATX, 2x 8-pin EPS12V

Internal connections - lighting

3x 3-pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

Buttons/Switches

Clear CMOS button (external)

USB BIOS flashback (external)

Audio

Realtek ALC1220P

DTS Audio Processing

network - Realtek (2.5Gb/s)

graphic - iGPU

RAID level - 0/1/10 (B850)

VRM design - 14+2+1, 16 virtual CPU phases (2x7+2), 9 real CPU phases (7+2)

BIOS - 1x 32MB (256Mb)

Special features

Audio+solid capacitors, diagnostic LED (LED indicators), integrated I/O shield, 2x M.2 passive heatsinks

guarantee - 3 years
