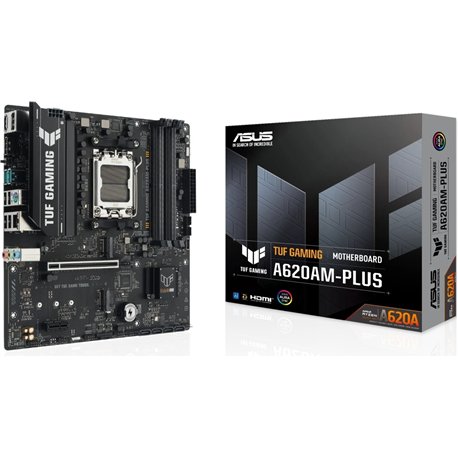

לוח אם Asus TUF GAMING A620AM-PLUS AMD A620A Socket AM5 micro ATX - 90MB1N30-M0EAY0

לוח אם Asus TUF GAMING A620AM-PLUS AMD A620A Socket AM5 micro ATX - 90MB1N30-M0EAY0 | מפרט טכני:

Form factor - µATX

base - AMD AM5

Chipset - AMD A620A [OEM]

CPU compatibility - Ryzen 7000 , Ryzen 8000G , Ryzen 9000 , CPU compatibility list

R.A.M. - 4x DDR5 DIMM slots, dual channel, max. 256GB UDIMM Non-ECC+ECC

RAM data rate - DDR5-5200 (Ryzen 7000/​Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-7600 OC

ECC support - Yes

External connections - 2x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 2x USB-A 3.1 (10Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek), 1x PS/​2 combo

PCIe slots - 1x PCIe 4.0 x16, 1x PCIe 3.0 x1

M.2 slots - 1x M.2/​M-Key (PCIe 4.0 x4, 2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242)

Other interfaces - 4x SATA 6Gb/s (A620A)

Internal connections - USB - 1x USB 3.0 Header Key-A (5Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)

Internal connections - other - 1x serial header, 1x S/​PDIF header

Internal connections - Cooling - 1x CPU fan 4-pin PWM, 2x fan 4-pin PWM

Internal connections - power supply - 1x 24-pin ATX, 1x 8-pin EPS12V

Internal connections - lighting - 3x 3-pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

Buttons/Switches - USB BIOS Flashback (external)

Audio - Realtek ALC897

network - Realtek (2.5Gb/s)

graphic - iGPU

RAID level - 0/1/10 (A620A)

BIOS - 1x 32MB (256Mb)

Special features - Audio + solid capacitors

guarantee - 3 years
