לוח אם ASUS B850M MAX GAMING WIFI AMD B850 Socket AM5 micro ATX - 90MB1LL0-M0EAY0

לוח אם ASUS B850M MAX GAMING WIFI AMD B850 Socket AM5 micro ATX - 90MB1LL0-M0EAY0 | מפרט טכני:

shape factor

µATX

Socket

AMD AM5

chipset

AMD B850

CPU-Compatibility

Ryzen 7000, Ryzen 8000G, Ryzen 9000, CPU-compatibility list

RAM-Slots

4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC+ECC), max. 256GB (UDIMM)

RAM-data installment OC

max. DDR5-8000

RAM-data installment native

DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)

ECC support

yes

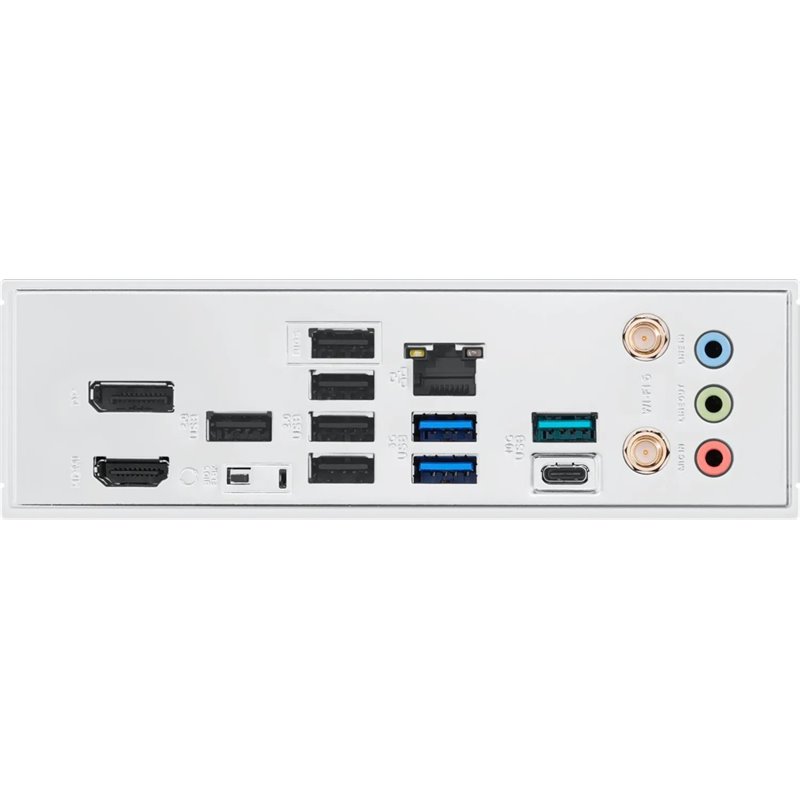

external connectors

1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/​s, PD-Out 15W), 1x USB-A 3.1 (10Gb/​s), 2x USB-A 3.0 (5Gb/​s), 5x USB-A 2.0 (480Mb/​s), 3x 3.5mm jack (Realtek), 1x RJ-45 (1000Base-T, Realtek), 2x antenna connector Quick Connect

PCIe-Slots

1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x1)

M.2-Slots

1x M.2/​M-Key (PCIe 5.0 x4, 2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x2, 2280/​2260/​2242), 1x M.2/​E-Key (2230, occupied with WiFi+BT module)

Miscellaneous Interfaces

4x SATA 6Gb/s (B850)

internal connectors - USB

1x USB 3.0 Header Key-A (5Gb/​s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/​s, 4x USB-A), 2x USB 2.0 header 9-Pin (480Mb/​s, 4x USB-A)

internal connectors - other

1x Chassis Intrusion Header, 1x serial Header, 1x TPM Header, 1x S/​PDIF Header

internal connectors - Cooling

2x CPU fan 4-Pin PWM, 4x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM

internal connectors - Power supply

1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V

internal connectors - Lighting

3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

buttons/Switches

USB BIOS Flashback (external)

Audio

Realtek

network

Realtek (1Gb/​s)

Graphics

iGPU

Wireless

Wi-Fi 6 (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2, Realtek RTL8851BE), Bluetooth 5.3

RAID level

0/​1/​10 (B850)

VRM-Design

8+2+1, 10 virtual CPU-phases (8+2)

MOSFETs VCORE

8x

MOSFETs SOC/VCCGT

2x

MOSFETs VDD_MISC/VCCSA/VCCAUX

1x

Lighting

not available

BIOS

1x 32MB (256Mb)

Special features

audio+solid capacitors, I/​O-shield integrated, white Build compatible (PCB primary black)
