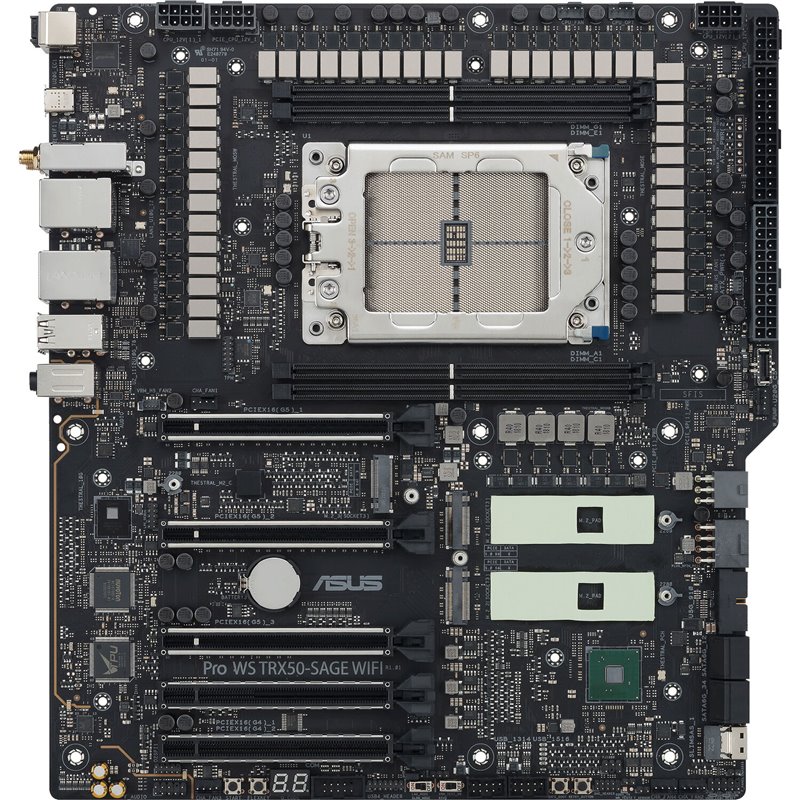

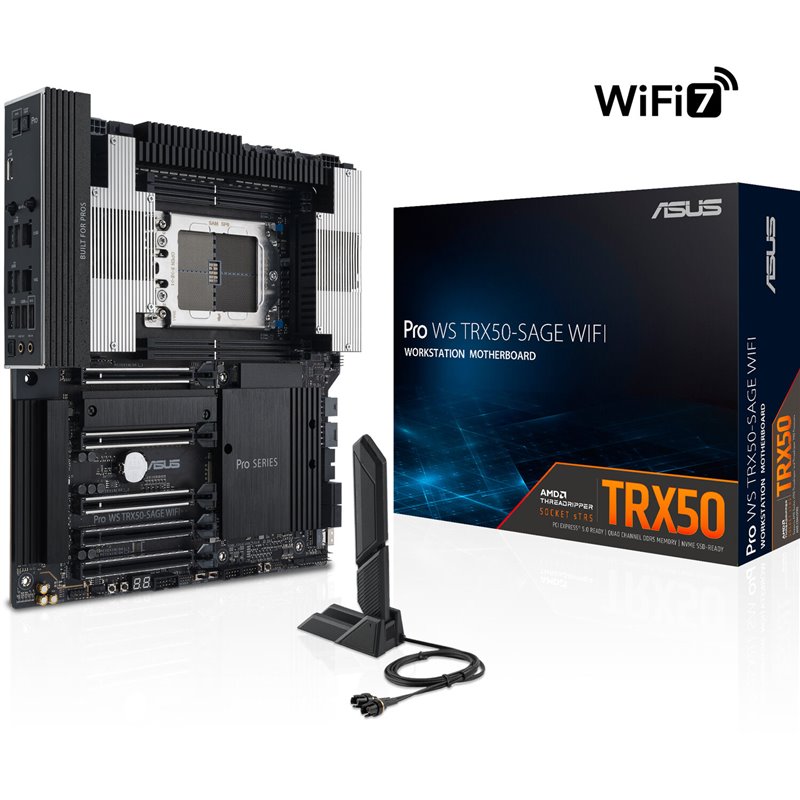

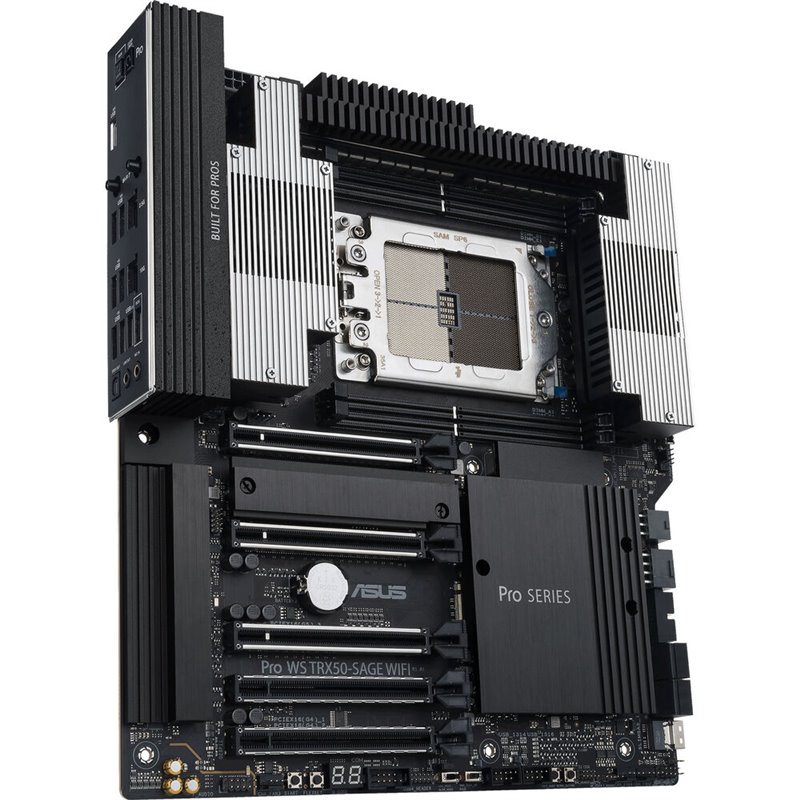

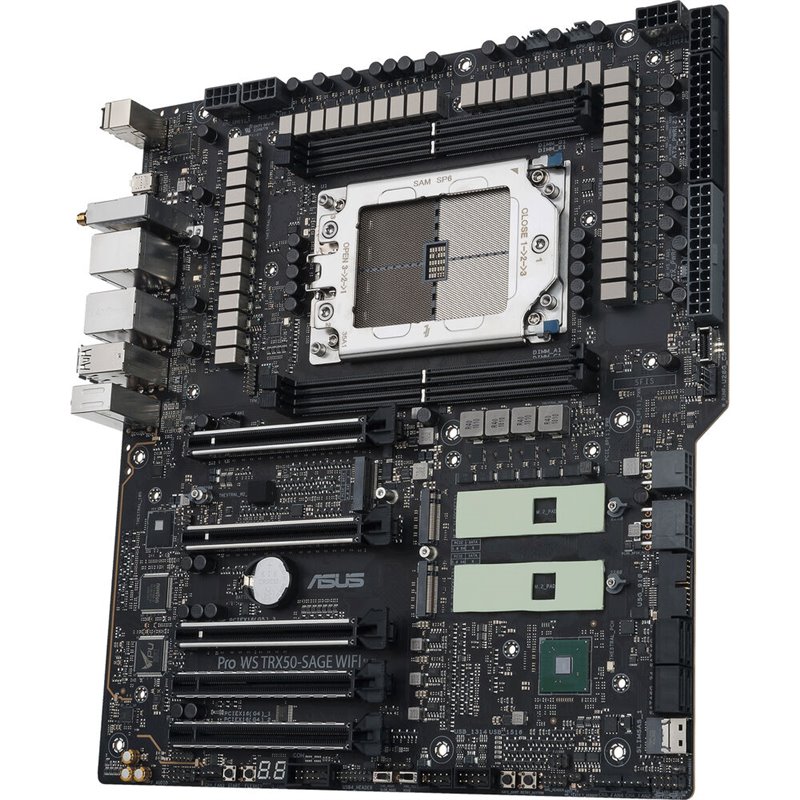

לוח אם Asus Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB 90MB1FZ0-M0EAY0

Name: מחיר לוח אם Asus Pro WS TRX50-SAGE WIFI AMD TRX50 90MB1FZ0-M0EAY0
Brand: Asus
SKU: 90MB1FZ0-M0EAY0
Availability: InStock

יצרן : Asus

מק"ט : 90MB1FZ0-M0EAY0

מצב מוצר : מוצר חדש

ציון

שלחו לי מייל כאשר המוצר חוזר למלאי

Key Specs

Chipset	AMD TRX50
CPU Socket	sTR5
Memory Slots	4x 288-Pin
Memory Support	DDR5 MT/s
Storage Slots	2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots	2x PCIe 5.0 x16 1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x16 1x PCIe 4.0 x16 (x4 mode
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor	CEB

CPU

Chipset	AMD TRX50
CPU Socket	sTR5

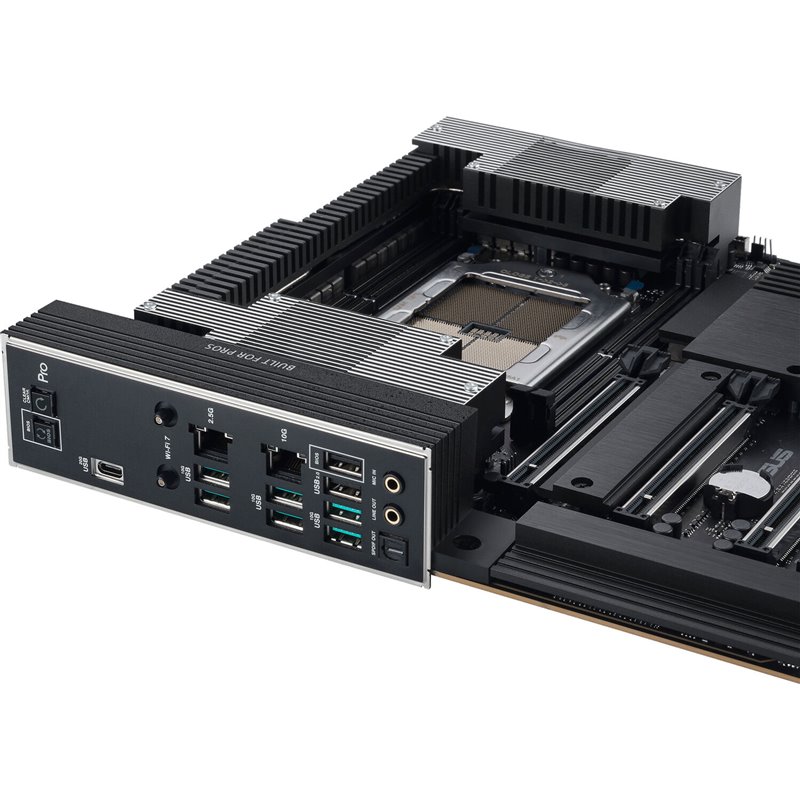

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 6x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	No
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Marvell AQtion 10GbE 1x Intel 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Storage Expansion

Internal I/O

Expansion Slots	2x PCIe 5.0 x16 1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x16 1x PCIe 4.0 x16 (x4 mode)
USB	1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 4x 4-Pin System 2x VRM Heatsink 1x Thermal Sensor
Liquid Cooling	1x 4-Pin Pump
Power Connectors	2x 24-Pin Mainboard 3x 8-Pin ATX 2x 8-Pin CPU 1x 6-Pin ATX
Security	Chassis Intrusion, TPM Header
Diagnostics	ReTry, Safe Boot, Slow Mode, Start
Add-On	1x USB4 Expansion Card Header
Legacy	1x Parallel 1x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2

Audio

Audio Codec	Realtek ALC1220P (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.4

Physical

Form Factor	CEB
Dimensions	12 x 11" / 30.5 x 27.9 cm
