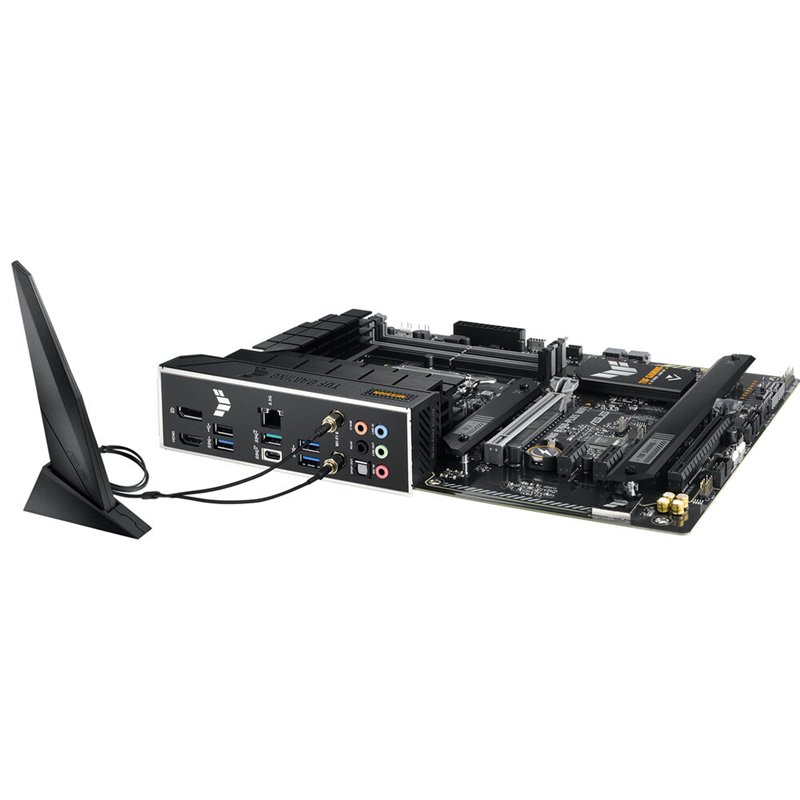

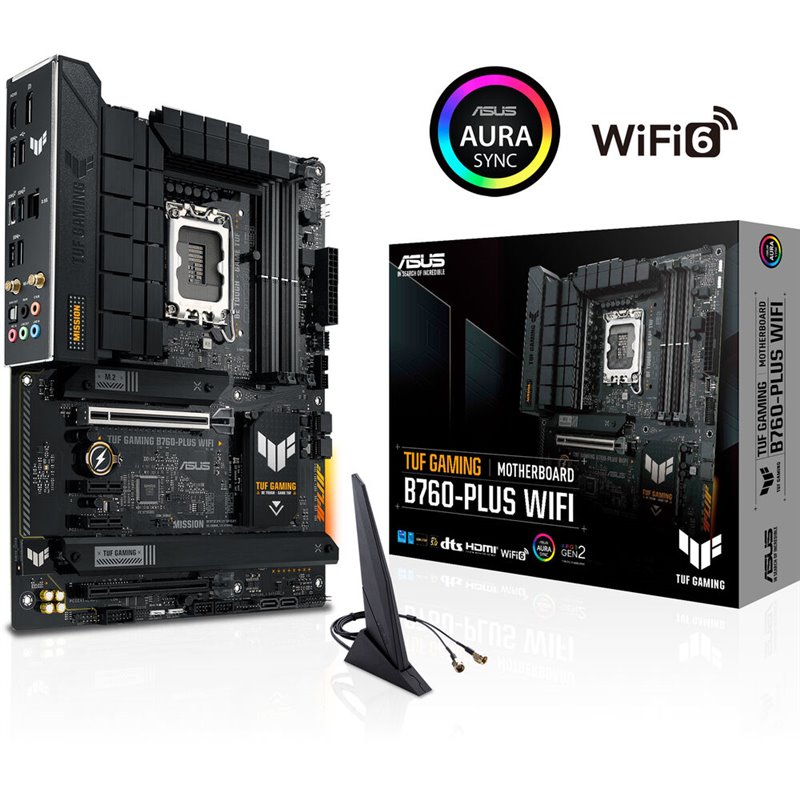

לוח אם Asus TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX 90MB1DF0-M1EAY0

Name: מחיר Asus TUF GAMING B760-PLUS WIFI D4 Intel B760 ATX 90MB1DF0-M1EAY0
Brand: Asus
SKU: 90MB1DF0-M1EAY0
Availability: InStock

יצרן : Asus

מק"ט : 90MB1DF0-M1EAY0

מצב מוצר : מוצר חדש

ציון

שלחו לי מייל כאשר המוצר חוזר למלאי

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots	2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 3.0 x16 (x4 mode) 2x PCIe 3.0 x1
Wi-Fi	Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with 2 x 2 MU-MIMO Support
Form Factor	ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 1x DisplayPort
Audio	5x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Realtek 2.5Gigabit
Wi-Fi Antenna	2x Connector

Memory

Storage Expansion

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 3.0 x16 (x4 mode) 2x PCIe 3.0 x1
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU 1x 4-Pin CPU
Security	Chassis Intrusion
LED Header	4x RGB
Audio	No
Diagnostics	Clear CMOS
Add-On	1x Thunderbolt Header
Legacy	1x Serial

BIOS

ROM

128 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with 2 x 2 MU-MIMO Support
Bluetooth	5.2

Software

OS Compatibility

Windows 10 to 11

Physical

Form Factor	ATX
Dimensions	9.6 x 12" / 24.4 x 30.5 cm
