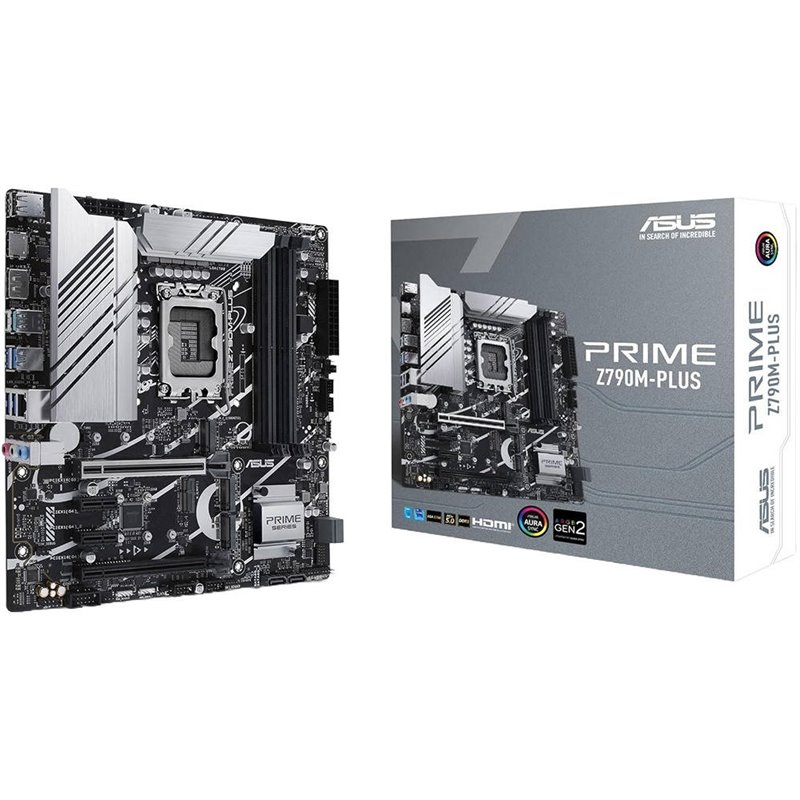

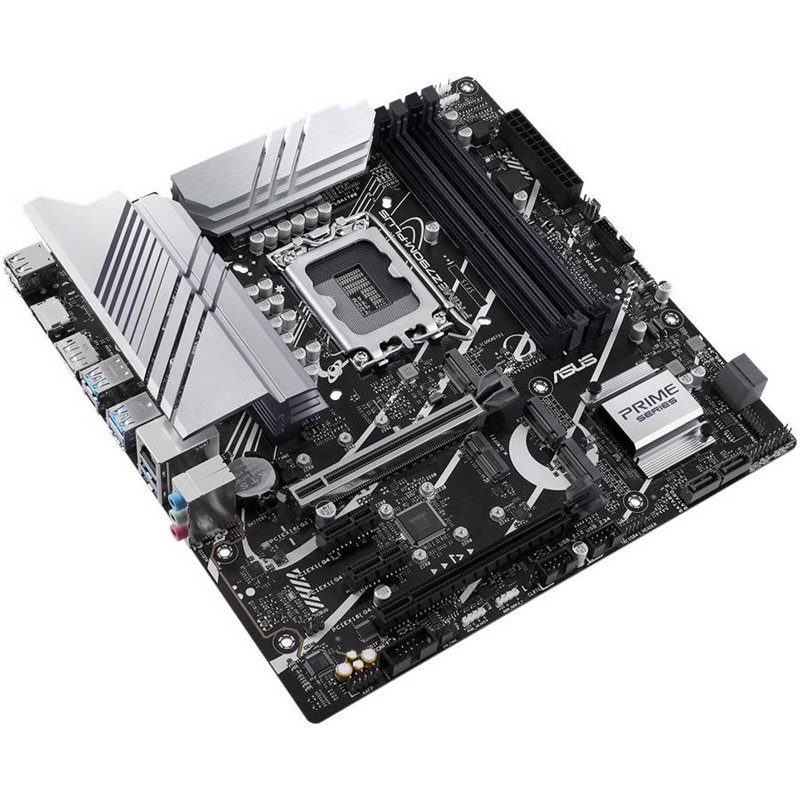

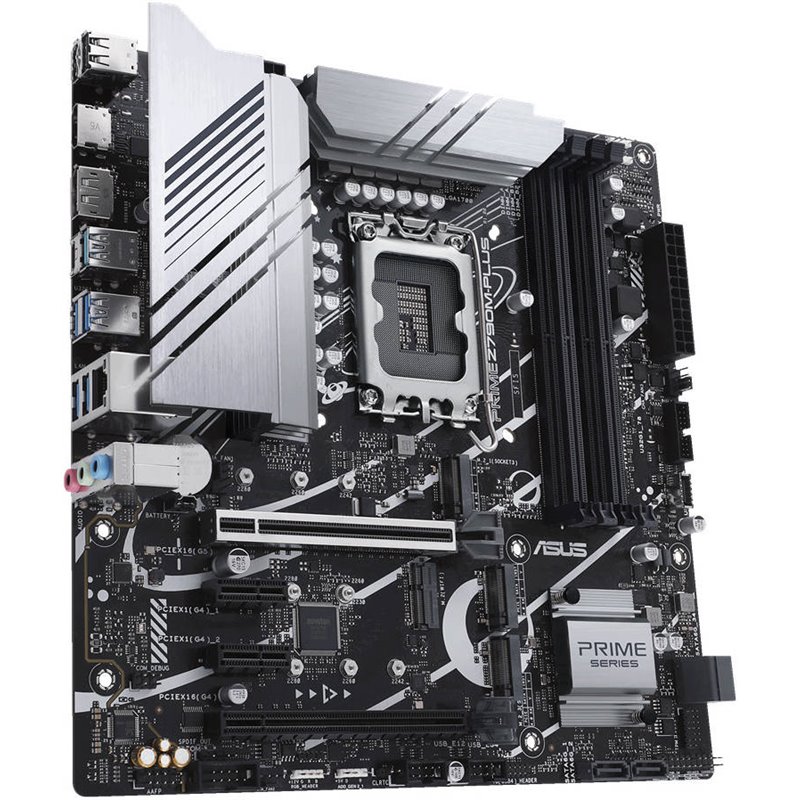

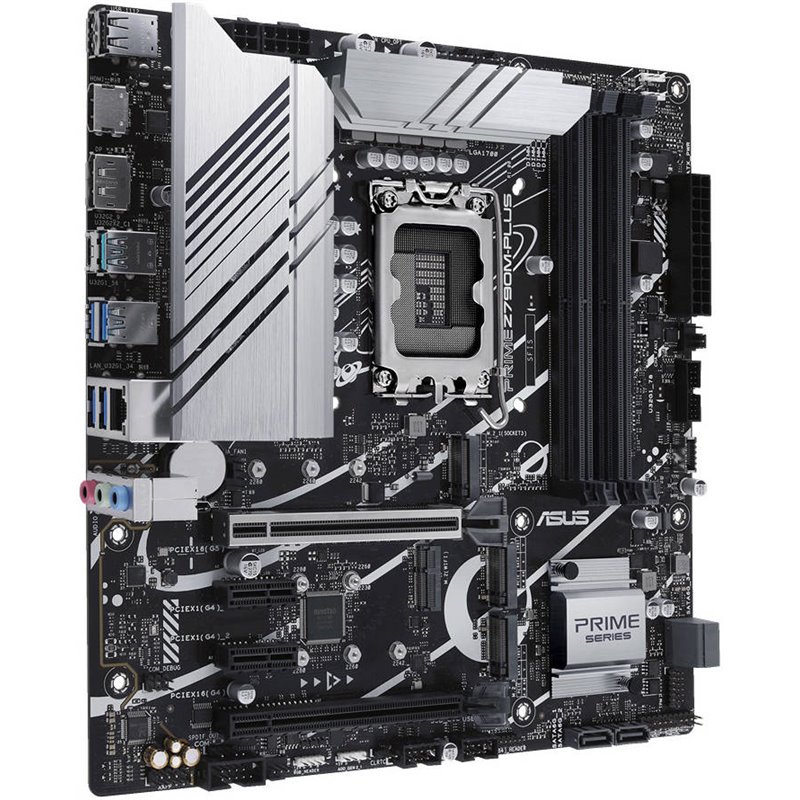

לוח אם Asus PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX 90MB1E70-M1EAY0

Name: מחיר לוח אם Asus PRIME Z790M-PLUS Intel Z790 LGA 1700 90MB1E70-M1EAY0
Brand: Asus
SKU: 90MB1E70-M1EAY0
Availability: InStock

יצרן : Asus

מק"ט : 90MB1E70-M1EAY0

מצב מוצר : מוצר חדש

ציון

שלחו לי מייל כאשר המוצר חוזר למלאי

Key Specs

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
Wi-Fi	No
Form Factor	Micro-ATX

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort 1.4 Output 1x HDMI 2.1 Output
Audio	3x 1/8" / 3.5 mm
Ethernet / Controller	1x Intel Gigabit

Memory

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) 1x Thunderbolt 4 Header (Supports 1 USB-C Port)
Air Cooling	2x 4-Pin CPU 3x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX 1x 4-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	1x RGB
Audio	1x S/PDIF
Diagnostics	CPU Overclock, Clear CMOS, HOTKEY

BIOS

ROM

192 Mb

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2, Thunderbolt 4

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6" / 24.4 x 24.4 cm
